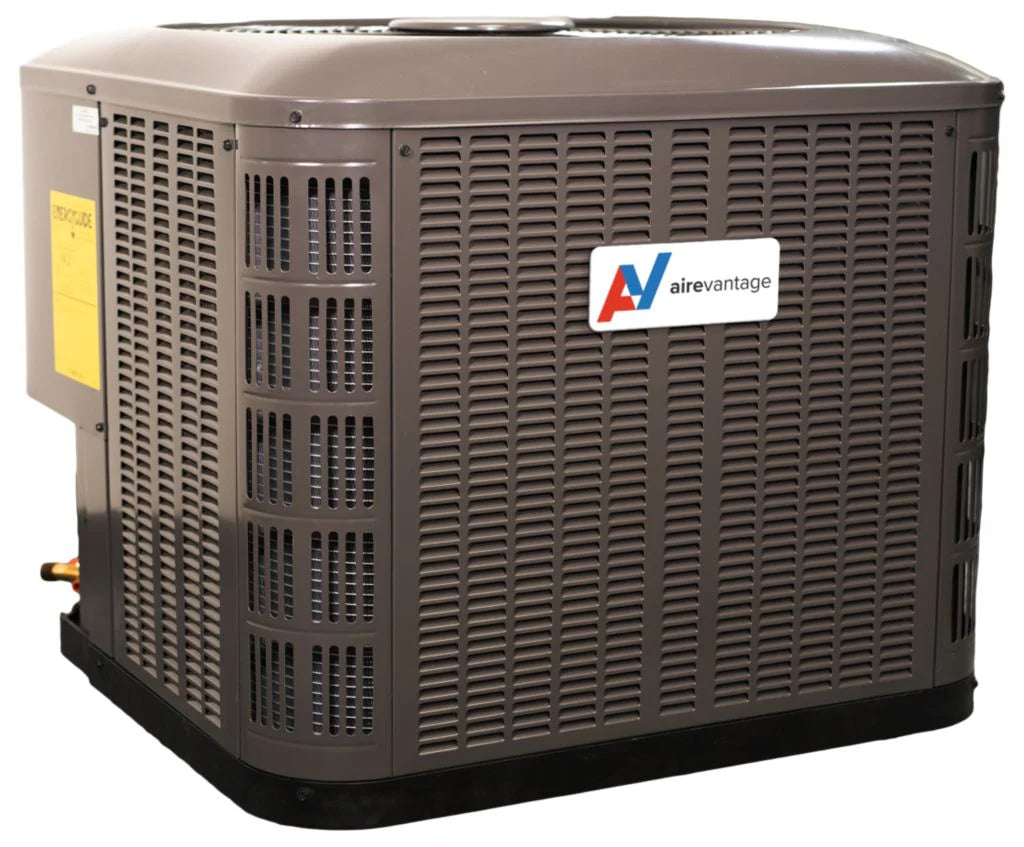

AireVantage Air Conditioner - Classic 3.5 Ton 14.3 SEER2 Hair Conditioner Condenser, 208-230/1/60

Quality Compressor: State-of-the-art Copeland Scroll™ compressor is standard equipment.
Designed Using Galvanized Steel: Units feature a powder-coated paint with a gloss finish that eliminates sharp edges and reduces corrosion, fading, chipping and scratching. It passes 950 hours of salt spray per ASTM Std. B117.
Permanently Lubricated Motor: A heavy-duty PSC motor for long-lasting reliability and quiet operation. Requires no maintenance and is completely protected from rain and snow.
Composite Base Pan: Absorbs sound and is corrosion-resistant, composite construction is stronger and lighter than steel.
Removable Top Grille Assembly: Allows ease-of-service from the top without disconnecting fan motor leads.
Swept-Wing Fan Blade: Designed to significantly reduce unwanted noise.
High-Pressure Switch: Protects against abnormally high system pressures. Auto-reset feature prevents nuisance service visits.
Liquid Line Filter Drier: Included with unit, field installed.
One-Piece Top Orifice: Designed for maximum airflow and quiet operation.
Five-Minute Restart Time Delay: When the unit shuts down, a five-minute delay keeps the unit from restarting, eliminating the highest cause for compressor failure.
Easy Compressor and Control Access: Designed to make servicing easier for the contractor, access panels are provided for all controls and the compressor from the side of the unit.
All-Aluminum Coils: All-aluminum coils are included in all models to provide high corrosion resistance.
Servicer-Friendly Jacket: Side panels can be easily removed and replaced without removing the top grill.

COMPLETE WITH LINE SETS AN
COMMUNICATION WIRE.
LINE SET COVERS AVAILABLE ON
REQUEST.

5 YR ON PARTS
7 YR ON COMPRESSOR

AUX MINI SPLIT HEATPUMPS WITH
REMOTE AN REFRIGERANT LINES SETS
AN COMMUNICATION WIRE
EVERYTHING REQUIRED TO INSTALL.

INSTALLATION AVAILABLE UPON
REQUEST
